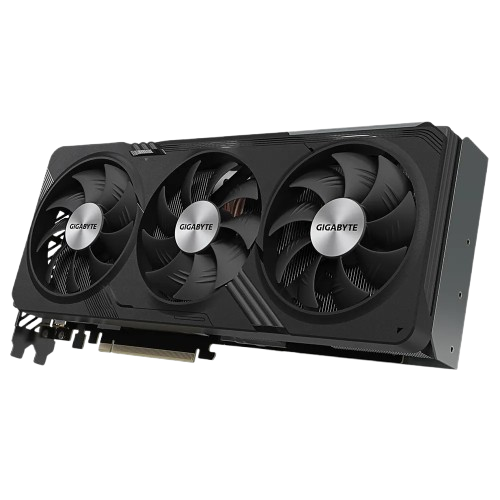

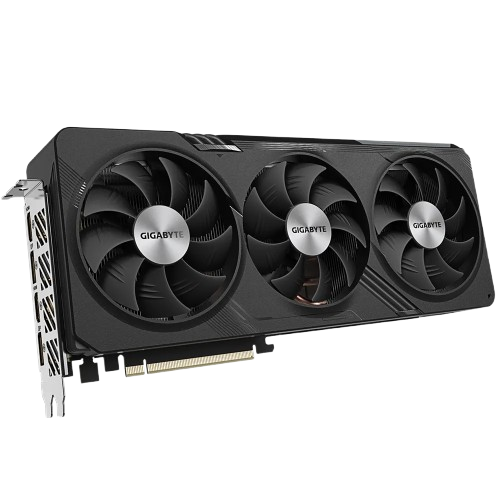

GIGABYTE RADEON RX 7700XT GAMING OC 12GB

The GIGABYTE RADEON RX 7700 XT GAMING OC 12GB is a performance-oriented graphics card designed for excellent 1440p gaming experiences and capable of handling some 4K gaming with optimized settings. It features Gigabyte’s WINDFORCE cooling system, a factory overclock, and RGB lighting.

Key Features and Design:

• AMD Radeon RX 7700 XT GPU: At its core is the AMD Radeon RX 7700 XT, based on the RDNA 3 architecture. It provides a significant performance boost over previous generations, delivering enhanced ray tracing capabilities and support for the latest gaming technologies. The 3456 stream processors provide plenty of horsepower for gaming and other graphical tasks.

• 12GB GDDR6 Memory: The card comes equipped with 12GB of GDDR6 memory, clocked at 18 Gbps and connected via a 192-bit memory interface. This provides ample bandwidth for textures, frame buffers, and other data-intensive workloads, ensuring smooth performance even in demanding games.

• WINDFORCE Cooling System: Gigabyte’s WINDFORCE cooling system is a key feature of this card. It typically incorporates features such as:

  • Alternate Spinning Fans: Reduces turbulence and enhances airflow.

  • Unique Blade Fan Design: Increases airflow and static pressure.

  • Composite Heat Pipes: Efficiently transfer heat away from the GPU.

  • Direct Touch GPU Cooling: The heat pipes make direct contact with the GPU die for optimal heat transfer.
    This cooling solution ensures effective heat dissipation and helps maintain stable performance, even under heavy gaming loads.

• Factory Overclock: The “GAMING OC” designation indicates that this card has been factory overclocked by Gigabyte. This pre-applied overclock provides a performance boost out of the box, allowing you to enjoy higher frame rates without manual tweaking.

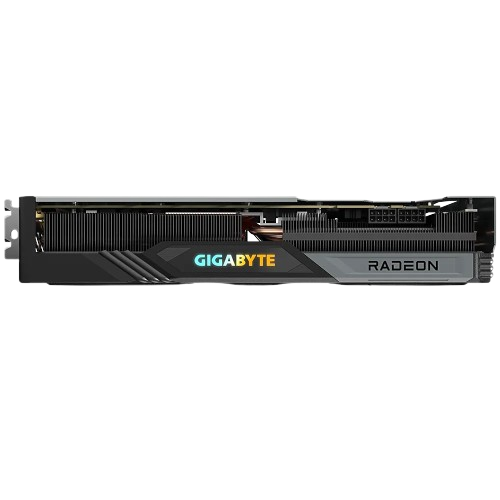

• RGB Fusion Lighting: The card features customizable RGB lighting via Gigabyte’s RGB Fusion software. This allows you to personalize the card’s appearance and synchronize it with other RGB-enabled components in your system.

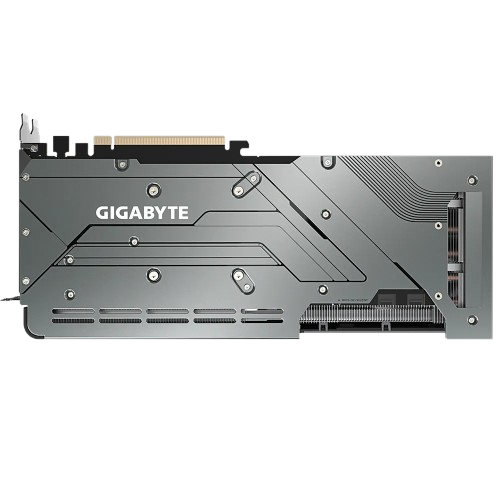

• Protection Metal Back Plate: The metal backplate not only enhances the card’s aesthetics but also provides structural rigidity and helps dissipate heat.

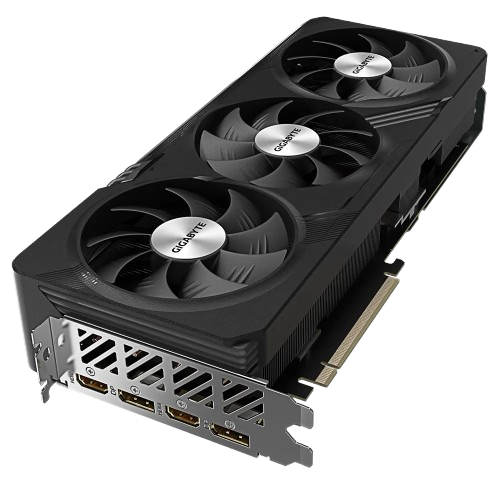

• Connectivity: The GIGABYTE RADEON RX 7700 XT GAMING OC offers two DisplayPort 2.1 ports and two HDMI 2.1 ports. These outputs provide compatibility with a wide range of monitors and displays, including the latest high-resolution and high-refresh-rate options.

• Power Requirements: The card requires two 8-pin PCIe power connectors. Gigabyte recommends a 700W power supply to ensure stable and reliable operation, particularly when paired with other power-hungry components.

• RDNA 3 Features: The RDNA 3 architecture brings with it features such as:

  • Ray Tracing: Improved ray tracing performance compared to previous generations of Radeon cards, offering more realistic lighting and reflections in supported games.

  • AMD FidelityFX Super Resolution (FSR): FSR upscales lower-resolution images to higher resolutions, improving performance with minimal visual impact. FSR 3 introduces frame generation technologies for even greater performance gains in supported titles.

  • AMD Smart Access Memory (SAM): When paired with a compatible AMD Ryzen processor and motherboard, SAM allows the CPU to access the entire GPU memory, potentially boosting performance.

• 0dB Cooling: Expect the fans to stop spinning at low temperatures for silent operation.
