Name: Gigabyte B450M DS3H WiFi
Brand: Gigabyte
SKU: 4040
Availability: InStock

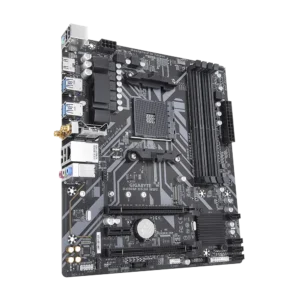

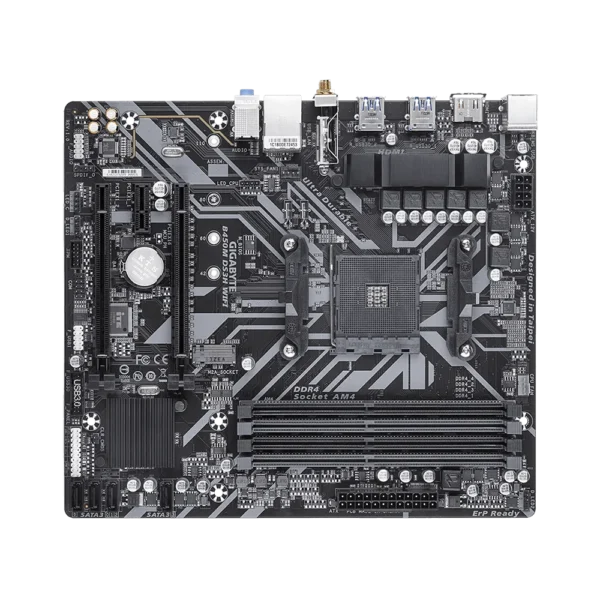

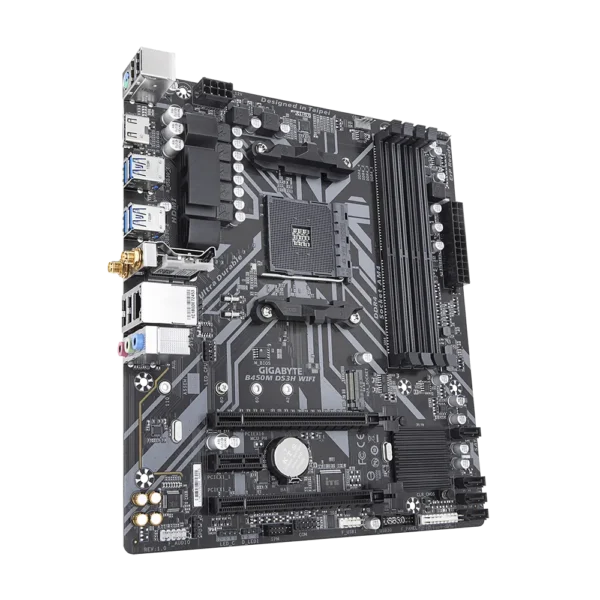

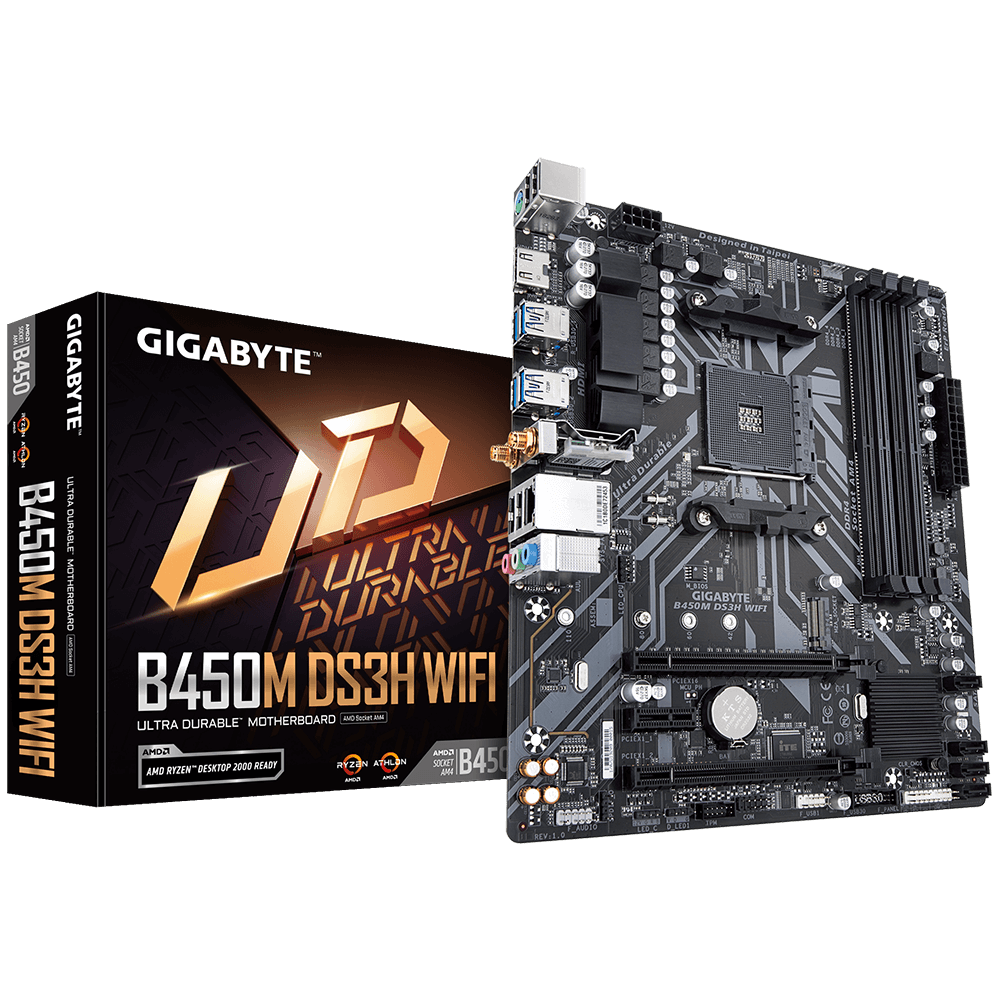

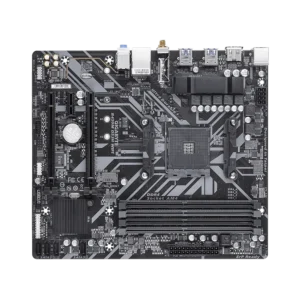

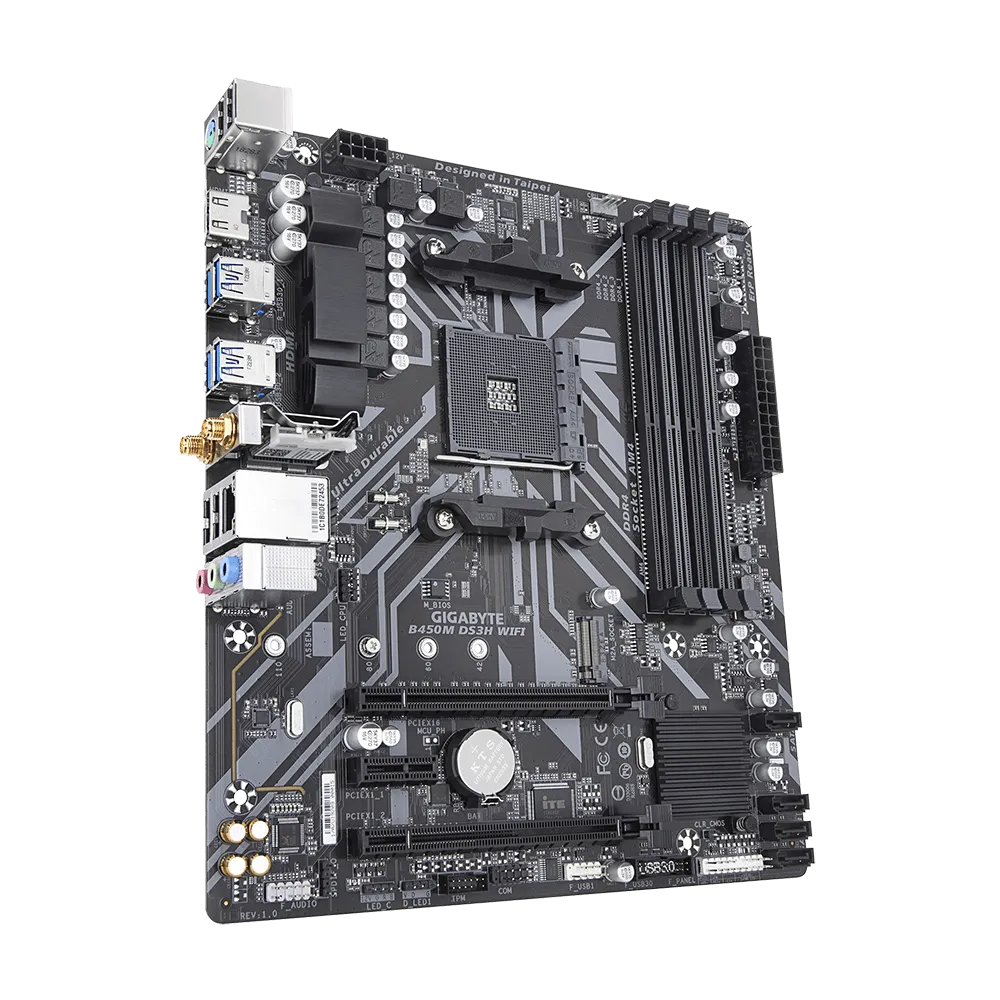

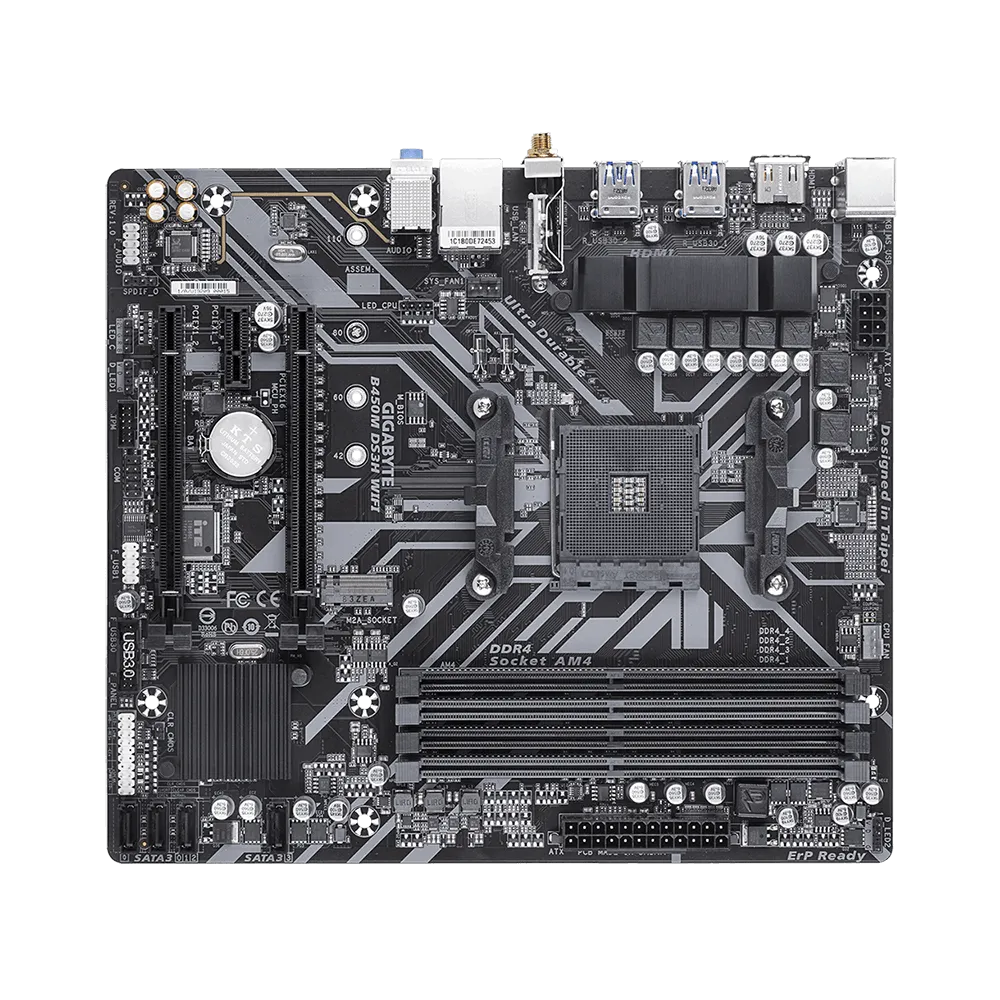

Gigabyte B450M DS3H WiFi

₱4,895.00

Socket: AM4
Chipset: AMD B450
Form Factor: Micro-ATX
CPU Support: Supports AMD Ryzen 5000 series and earlier generations with BIOS updates.
Memory: 4 x DDR4 DIMM sockets for up to 128 GB of RAM, supporting speeds up to 3600MHz (O.C.).
Storage: 1 x M.2 slot (PCIe 3.0 x4) and 4 x SATA 6Gb/s ports.
Connectivity: Features integrated Intel Dual Band 802.11ac Wi-Fi and Bluetooth 4.2. Includes a Realtek Gigabit LAN port.
Expansion Slots: 1 x PCIe 3.0 x16 slot, 1 x PCIe 2.0 x16 slot (x1 mode), and 1 x PCIe 2.0 x1 slot.
Audio: Realtek 7.1-channel High Definition Audio.

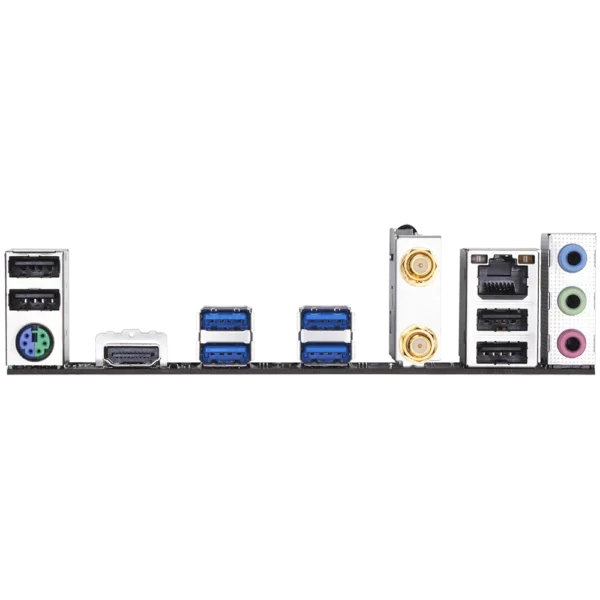

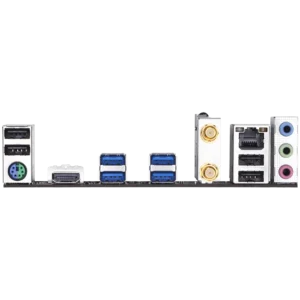

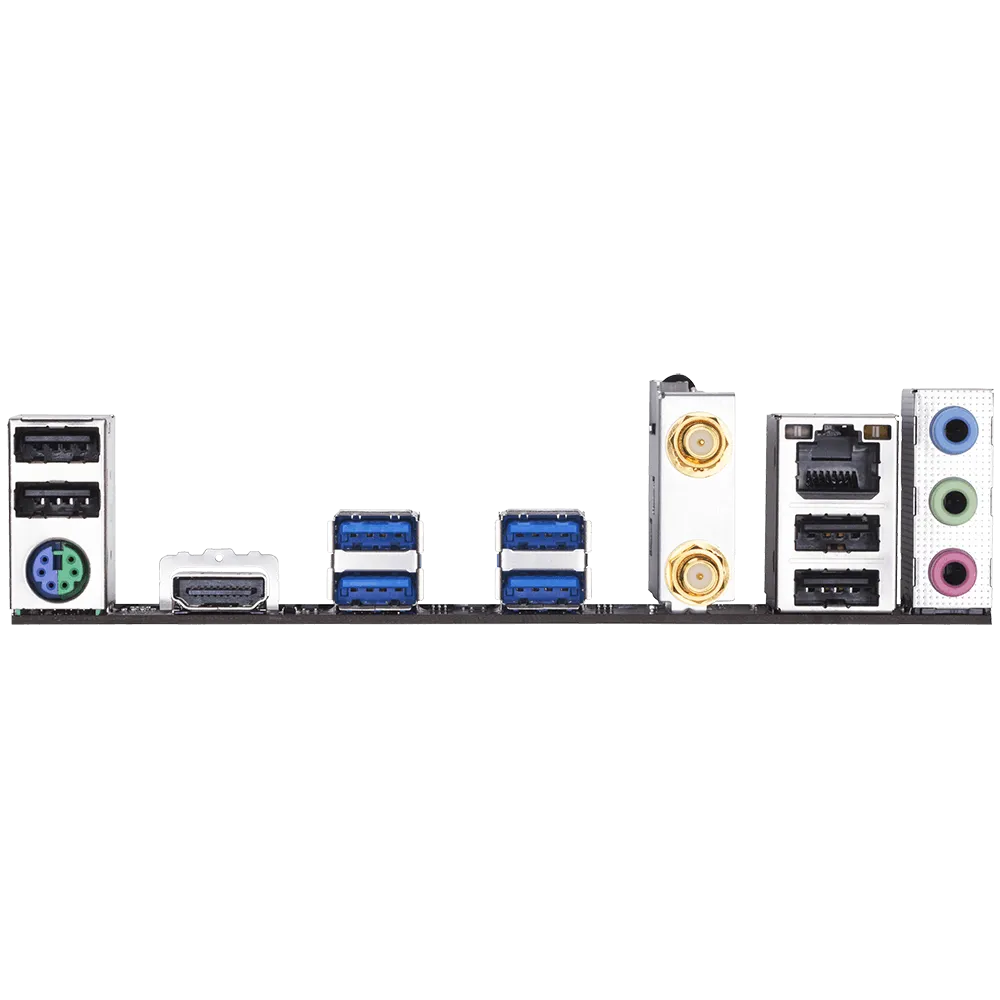

USB (Rear): 4 x USB 3.1 Gen 1 and 4 x USB 2.0/1.1 ports.
RGB: RGB FUSION 2.0 support with headers for LED strips.

The Gigabyte B450M DS3H Wi-Fi is a popular and reliable Micro-ATX motherboard designed for budget-conscious PC builders using the AMD AM4 platform. Its appeal lies in its combination of essential features and a highly accessible price point. The “Wi-Fi” model differentiates itself by including a dual-band Intel 802.11ac Wi-Fi and Bluetooth module right out of the box, saving users from needing a separate expansion card.

Durability and power design

The motherboard is built with Gigabyte’s “Ultra Durable” philosophy, using high-quality components designed for longevity and stability.

Solid capacitors: Chosen for their lower Equivalent Series Resistance (ESR) to ensure stability and a longer lifespan.
Anti-sulfur resistor design: Prevents sulfur compounds in the air from damaging tiny onboard resistors, a common cause of motherboard failure.
Hybrid Digital PWM: A 4+3 phase power design helps provide stable power delivery to the CPU, especially important for entry-level overclocking.
Glass Fabric PCB: A technology that reduces the amount of space between the fiber weave, making it more resistant to moisture.
